another update on this: i finally got around to installing the replacement batteries (and the network management card) I bought off taobao, only to realize that there's probably something wrong with voltage regulation on the battery charging bits — it's only putting out 22V unloaded, which is way way way too low for 2 lead-acid batteries in series

guess that means i'll have to eventually pull it apart and see which capacitors (or other bits) are failing. not fun :(

(also, the batteries seem to be a hair too wide for the UPS, and I really had to struggle to pull the batteries out after i put them in. oddly enough, this isn't the first time i've had this problem. maybe taobao batteries just have poorer tolerances for physical dimensions? they seem to work fine nonetheless)

also got a replacement for this and installed it in my storage server — this time, there's no massive air gap in the thermal paste, so I didn't bother repasting it.

it's sitting at a comfortable 85 degrees now (warning at 105degC, soft shutdown at 115degC, hard shutdown at 130degC), unlike the old card, which got to 115degC pretty quickly. this is despite it sitting between my GPU (a Tesla P100) and 4 NVMe drives! i don't know if it'll get even warmer if I start pushing 25Gbps through it, but that won't be happening any time soon

in any case, if something does go wrong with it, I can always fall back onto the existing 1Gbps connections — it'd suck a little, but it would still work fine

meanwhile, I'll probably wait for my replacement fuses for the old card to come, so I can fix it

so with that, i've finally swapped my old router (the CCR1036) out for the CCR2004. it's definitely a downgrade in terms of CPU performance:

- the CCR2004 tops out at ~14Gbps of throughput with IP filter rules — definitely no match for the CCR1036, which can do ~22Gbps with its 36 cores. that'd be the main bottleneck if I was pushing download and upload hard on my 10Gbps internet connection

- WireGuard (which I do use quite a lot) is definitely no exception either, and I don't think there's any form of hardware offload that I can make use of, so hitting even 1Gbps might be hard (especially if I'm also pushing other normal traffic)

but those trade-offs are pretty acceptable, since I'd probably not come close to saturating my internet connection(s) yet (?), and the extra SFP+ (and SFP28!) ports I get on the CCR2004 means I could get another one of those cheap 2.5Gbps broadband connections without having gigabit Ethernet ports limiting them to 1Gbps.

and of course, the CCR2004 draws less power, is much more modern, and has a massive heatsink in the back that lets it run fanlessly too

finally got the replacement sunon fans! the 4-pin PWM ones had mount holes that were a bit too big for the original screws, so I gave up on using them — at least I still had the 3-pin ones, which were going to go into the CCR1036

it seems like the CCR2004 comes with 3-pin fans (probably voltage control w/ tachometer then), and plugging the 4-pin sunon fans in seems to result in no tach readings. maybe I gotta reboot the router for it to work properly, but it works, so whatever

the new fans are a lot quieter (but to be fair, they are less deep and draw only up to 1/3 of the power). you could probably run the CCR2004 fanless even in the insanely warm cabinet I chucked everything in, but I don't know if that's healthy for the transceivers and PSUs, so I just let it run at ~2500rpm minimum speed. but even at full speed (~5000rpm), the fan sound is quite imperceptible, especially relative to my old CCR1036

(pic: State Railway of Thailand Special Express No. 46 sleeper train car, with upper bunk compartment unfolded but not set up yet)

recently decided to go on a trip to Bangkok by train, and it's a pretty decent experience if you've got the time to spend (or waste)

my journey was split up into four legs:

- JB Sentral to Gemas on KTM Intercity
- Gemas to KL Sentral on KTM ETS
- KL Sentral to Padang Besar on KTM ETS
- Padang Besar to Krung Thep Aphiwat on SRT Special Exp No. 46

I spent a bit more than I needed to, but it still ended up costing a bit less than a direct flight to BKK/DMK, and it's one of those things that'll be harder to do when you no longer have all that time to burn for fun :)

in other news, open this in chrome for a truly horrifying experience: https://cdn.jsdelivr.net/gh/osnr/horrifying-pdf-experiments@master/breakout.pdf

https://github.com/osnr/horrifying-pdf-experiments

(tl;dr: the PDF specification specifies functionality including embedded Flash, 3D objects, and JavaScript support, which you can see in action in that pdf above)

(graph of traffic served on ports 80/443 on my internet connection)

haven't updated this for a while, but I guess for the past few days, i've mostly been working on relying less on my main webserver (nginx) serving and proxying requests on ports 80/443 to other devices on my network

for various reasons, the container containing the main webserver is restricted to running only on my storage server, so if I have to take that down for whatever reason, everything else (including services running on other containers) will become inaccessible externally as well

now, i've moved to running nginx on each container that has services (that i'd like to have accessible from the internet on the HTTP/HTTPS ports) for SSL termination and whatnot, and a small haproxy container to proxy TCP streams directly to those containers based on the Host header(s) (for HTTP) or SNI (for HTTPS). there's nothing running on the haproxy container, so i can just let it migrate between my proxmox hosts as required

this also means traffic hitting other services on my networks don't have to pass through the main webserver (or the haproxy container), which is always nice to have

and for services that aren't strictly HTTP/HTTPS (which nginx wouldn't be able to handle, e.g. strelaysrv for Syncthing) or services that manage TLS certificates on their own (e.g. MangaDex@Home), I can now serve them on port 443 so they're accessible even on restrictive networks, woo!

installed 2.5G NICs into two of my Proxmox MFF nodes (EliteDesk 800 G4 DMs), and hooked them up to the 2.5G/SFP+ Hasivo switch I got a while back. I forgot to get a picture, so have this picture instead: on the bottom left is the old VGA flex I/O card from one of them, and the other thing is an old 1G NIC

these are made by a seller on Taobao, who makes these m.2 cards with 1G/2.5G PHYs, along with magnetics/eth jacks on another PCB, with variants for different models of mini desktops (which really reduces the jank factor)

they're also ~$20 each (and are PCIe, of course), so you don't have to deal with USB jitter and unreliability, or pay $200+ for the unobtainium tb3 flex I/O cards + a tb3 NIC

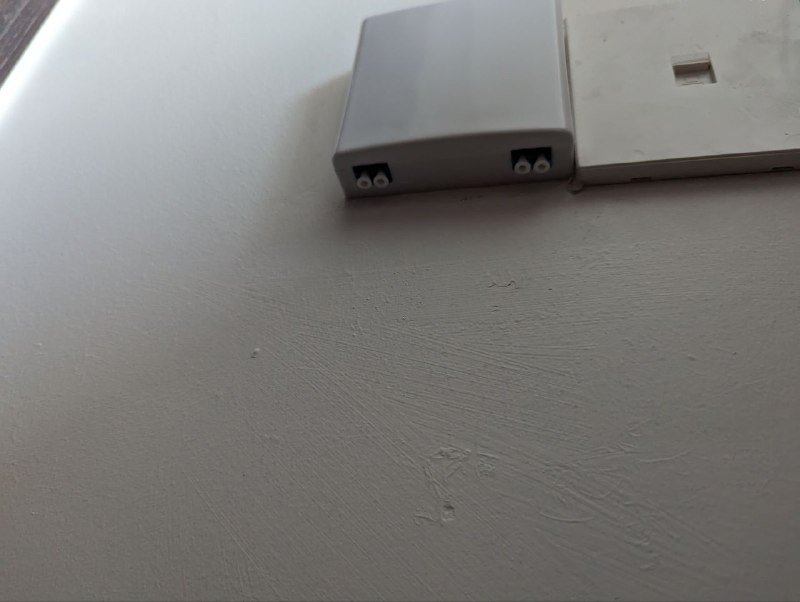

finally got everything tidied up nicely. the fiber's got a bit of a sharp bend in the wall boxes, but it probably shouldn't be a problem at all — light's still going through anyway, and even a 2km transceiver is a bit overkill for a ~50m connection

cheap taobao 86 wall face plate

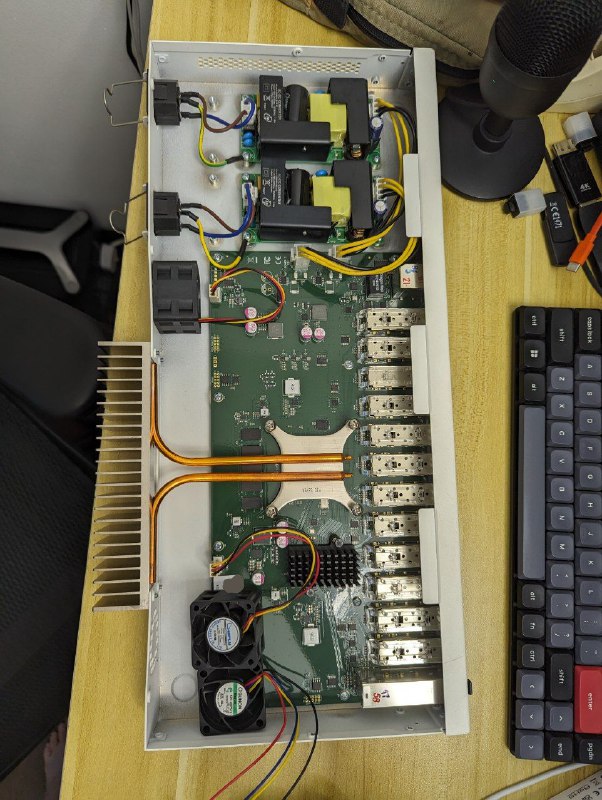

this thing allegedly suffers from port flaps (which is why it was so cheap... for a ccr2004-1g-12s+2xs), so I'm gonna be looping traffic between the ports all night and see if it still does that

(I bet it's because it's running routeros 6 though)

(im playing ebay gacha)

new router, possibly broken

I accidentally killed it lol

new NIC for the storage server: a HP-branded Mellanox ConnectX-4, which I'll be crossflashing to stock CX4 firmware too

2x 25Gb/s SFP28 ports for only $30 USD!

you'd probably have a hard time getting SFP+ NICs for this cheap, even though SFP28 ports are faster and compatible with SFP+ transceivers too

currently trying to finish a project for a cybersecurity class and the snapshot list for my victim VM is starting to look a bit deranged

fuck it, decided to just apply ~20V to the battery input terminals in lieu of proper batteries cuz I was a little impatient

it's alive :)
